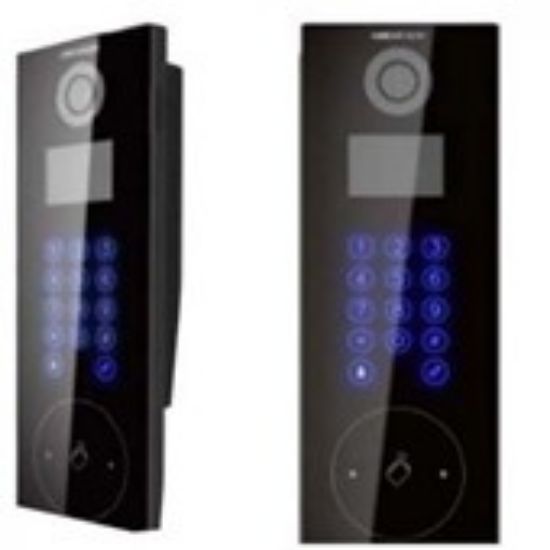

HIKVISION Video Intercom Door Station

The HIKVISION DS‐KD8102‐V is a compact yet powerful video intercom door station designed for secure residential and commercial access. Featuring a 3.5-inch colorful TFT LCD touch interface, it offers an intuitive user experience. The built-in 1.3 MP HD camera supports HD720P video at 25/30fps, with self-adaptive visible light supplementation for reliable low-light performance. It supports advanced access control with multiple door-opening methods including card, password, indoor station, or duress code. Integrated alarm inputs and outputs enable enhanced security monitoring. Its IP65-rated housing ensures protection against dust and water for outdoor installations.

Key Features:

• 3.5-inch capacitive TFT LCD screen (480×320 resolution)

• 1.3 MP HD camera (1280×720 @ 25fps)

• Visible light supplement for low-light clarity

• Supports multiple access modes: card, password, duress code, and remote indoor station

• 8-ch alarm input and 4-ch alarm output

• Wiegand & RS-485 interfaces

• USB 2.0, Ethernet (10/100/1000 Mbps)

• IP65 weatherproof design

• Alarm message auto-upload on duress code entry
