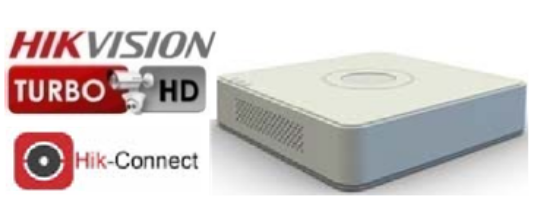

4-Channel Turbo HD 4MP Lite DVR – DS-7104HQHI-K1(S)

Video Input & Format Support

• 4 self-adaptive analog video channels (Turbo HD / AHD / CVI / CVBS)

• Supports up to 2 IP video inputs (expandable to 6 channels total)

• HDTVI coaxial video & audio input supported on all analog channels

• 1 RCA audio input for external microphone/speaker

Recording Resolution & Frame Rate

• Channel 1: 3MP @ 15fps

• Channels 1–4: 1920×1080P / 4MP Lite @ 15fps per channel

• High-quality recording ideal for residential and small-scale business use

Compression Technology

• H.265+ / H.265 supported

• Reduces file size and maximizes recording duration without compromising quality

Audio Support

• Supports coaxial audio signal for synchronized audio-video recording

• Clear audio monitoring without additional cabling

Storage & Design

• 1 SATA interface (supports up to 10TB HDD)

• Mini 1U metal case for compact, space-saving installation

• Quiet, energy-efficient for 24/7 operation

Connectivity

• 1 RJ45 10/100 Mbps Ethernet port for remote access and cloud monitoring

• Compatible with Hik-Connect and iVMS platforms

Recommended Use

• Perfect for homes, shops, and small offices looking for reliable HD surveillance with smart hybrid features
