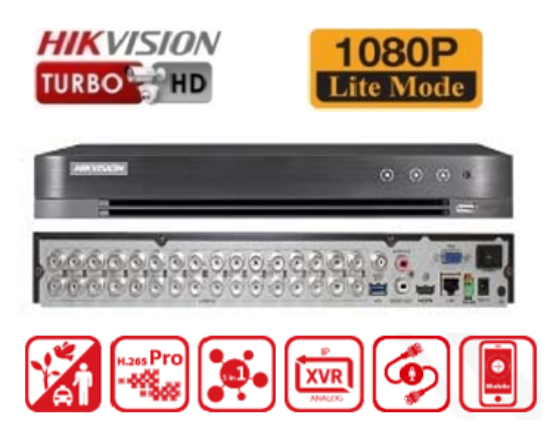

32-Channel Turbo HD DVR with 2 SATA – DS-7232HGHI-M2

High Channel Capacity

• 32 Turbo HD/CVI/AHD/CVBS self-adaptive video input interfaces

• 32 analog video + 1 audio input

• 2 IP video input channels (expandable up to 18 IP channels total)

• Supports flexible hybrid deployment of analog and IP cameras

Smart Motion Detection 2.0

• Deep learning-based motion detection

• Human and vehicle classification reduces false alarms

• Ideal for intelligent perimeter security and focused surveillance

Video Compression & Performance

• H.265+ / H.265 video compression technology

• Saves bandwidth and storage while maintaining high image quality

• 1080P Lite recording at 25fps per channel

Video Output Options

• 4K UHD HDMI output for ultra-clear monitoring

• CVBS output supported for legacy analog monitors

• Suitable for both modern and traditional display setups

Audio via Coaxial

• Supports audio transmission over coaxial cables

• Enables synchronized audio-video playback without separate audio wiring

Storage & Expandability

• 2 SATA interfaces, each supporting up to 10TB HDD (total 20TB max)

• Suitable for long-term, high-capacity recording needs

Networking

• 1 RJ45 10/100/1000 Mbps Ethernet interface for high-speed data access

• Supports remote monitoring, playback, backup, and smart alerts

Housing & Design

• 380mm 1U metal case for rack or desktop installation

• Built to perform in commercial, industrial, or large-scale environments

Ideal Use Cases

• Perfect for large offices, factories, warehouses, schools, and malls requiring centralized 32-channel recording with AI support
